Cardboard slotting machines · Wenzhou, China
Every groove,to a tenthof a millimetre.
HONGRUN builds well-shaped, cardboard, drum-type and manual slotting machines for the rigid box industry. Square V, U and L grooves at 80°–140°, in board from 200 g card to 4 mm density board.
Featured
HR-1300C
- Maximum grooving precision
- 0.10mm
- Adjustable groove angle
- 80–140°
- Peak output, HR-800K
- 200pcs/min
- Machine families in production
- 10lines
Why Hongrun
The groove decides the box.
A rigid box is only as square as its grooves. Too shallow and the corner cracks; too deep and it tears. Drag the sliders to see how angle and board thickness shape the cut our knives make.
Illustrative section with 0.2 mm skin left under the groove. Held to ±0.10 mm at maximum precision.
- 01
One-way deviation correction
Our original single-side wheel system squares every blank against the guide before it meets a knife. Boards that arrive a few degrees off still leave with grooves parallel to the edge.
- 02
Four-corner waste cleaning
Corner cut-outs are separated at the knife and carried away on a side-discharge belt — or to a single point on the HR-900P. Nobody reaches into a running line to clear trim.
- 03
V, U and L profiles on one frame
V and U grooves for crust paperboard, L-grooves for trimming density-board edges. Knife rows swap in minutes, so one machine covers your whole box catalogue.
- 04
Built under ISO 9001
Every machine is assembled and run-tested in our Rui’an plant under an ISO 9001 quality system with TS 16949 management practice, and protected by our own utility and design patents.
- 05
Engineers who answer
The team that designs the machines supports them. Commissioning, knife-setting and spare parts are handled directly — not through a chain of resellers.
The lineup
Ten machines. One for your blank size.
Well-Shaped SlottingHR-1000
Well-Shaped Slotting Machine
- Max feed
- 650 × 920 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 7.5 kW
Well-Shaped SlottingHR-900AFS
Well-Shaped Slotting Machine with Auto Stacking
- Max feed
- 650 × 900 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 11 kW
Well-Shaped SlottingHR-900P
Well-Shaped Slotting Machine, Centralized Waste Removal
- Max feed
- 600 × 900 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 8.0 kW
Well-Shaped SlottingHR-760
Well-Shaped Slotting Machine, Compact
- Max feed
- 580 × 680 mm
- Speed
- 180 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 6.0 kW

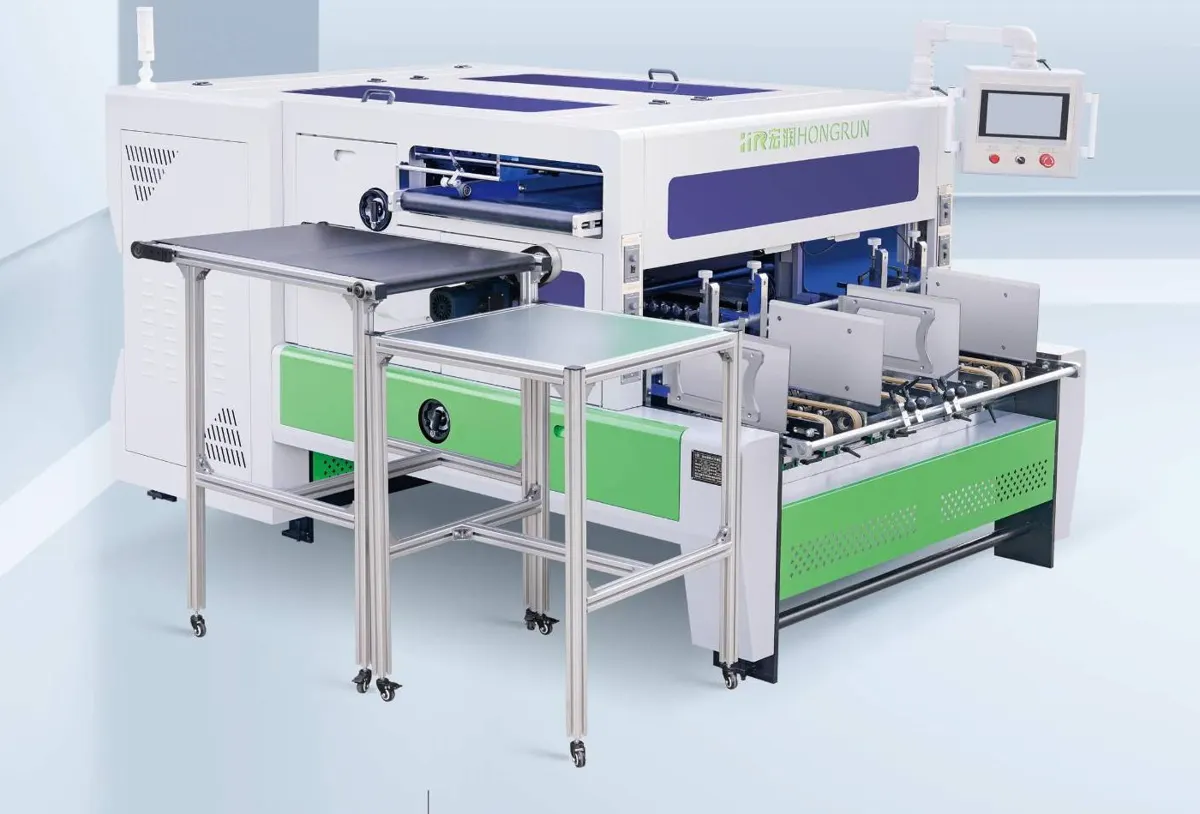

Cardboard SlottingHR-1000C / 1300C
Slotting Machine, Single & Dual Station
- Max feed
- 650 × 1230 mm
- Speed
- 80–100 m/min
- Board
- 0.6–4.0 mm
- Power
- 5.5 kW
Cardboard SlottingHR-860FD
Feeder Well-Shaped Cardboard Slotting Machine
- Max feed
- 600 × 680 mm
- Speed
- 40–60 m/min
- Board
- 200–600 g
- Power
- 9.0 kW
Cardboard SlottingHR-800K
Well-Shaped Cardboard Slotting Machine
- Max feed
- 470 × 620 mm
- Speed
- 200 pcs/min
- Board
- 220–600 g
- Power
- 6.0 kW
Cardboard SlottingHR-930KZ
Cardboard Slotting Machine, Dual Station
- Max feed
- 550 × 930 mm
- Speed
- 150 pcs/min
- Board
- 250 g–2 mm
- Power
- 2.2 kW
Drum-Type SlottingHR-1000 / 1200 / 1300
Drum-Type Slotting Machine
- Max feed
- up to 550 × 1230 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 3.0 kW
Manual SlottingHR-1000 Manual
Manual Slotting Machine
- Max feed
- 900 × 930 mm
- Speed
- 130 pcs/min
- Board
- 1.0–4.0 mm
- Power
- 1.5 kW

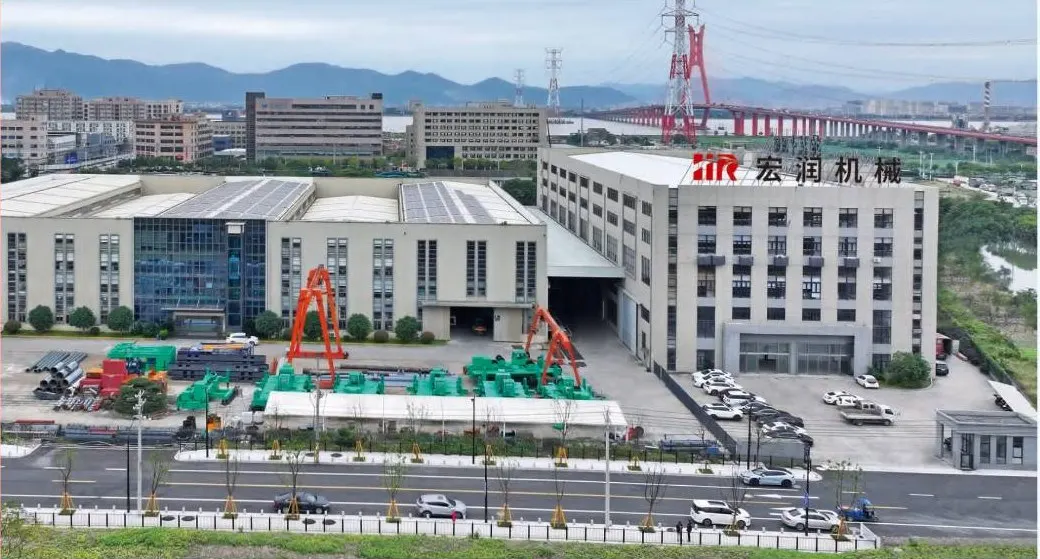

The factory · 宏润机械

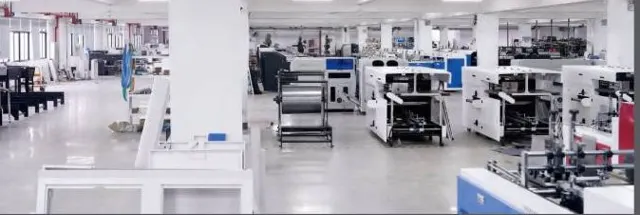

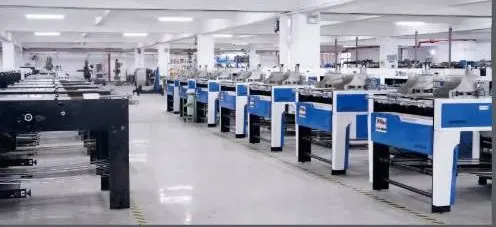

Designed, machined and run-tested in Rui’an.
Wenzhou Hongrun Machinery Manufacturing Co., Ltd. researches, builds, sells and services equipment for the fine gift-box industry from our own plant in the Dongshan Economic Development Zone. Our operating principle has not changed since day one:
Excellent quality. Trusted price. Customer first.

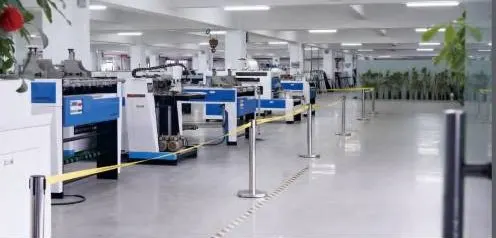

On the factory floor
“We replaced two manual grooving stations with one HR-1000. Corner-waste cleanup went from somebody’s full-time job to a bin change each shift.”
“Our greyboard is never perfectly square. The deviation correction is the reason we bought the 1300C, and it is the reason we bought a second one.”
“Knife set arrived in nine days. Their engineer walked our technician through the change on a WhatsApp video call at eleven at night, his time.”
Request a quotation
Send us your blank. We’ll size the machine.
Tell us the box, the board and the volume. A sales engineer replies within one working day with a recommended model, price, lead time and a shipping estimate to your port.
- WhatsApp / WeChat
- +86 186 0667 2918
